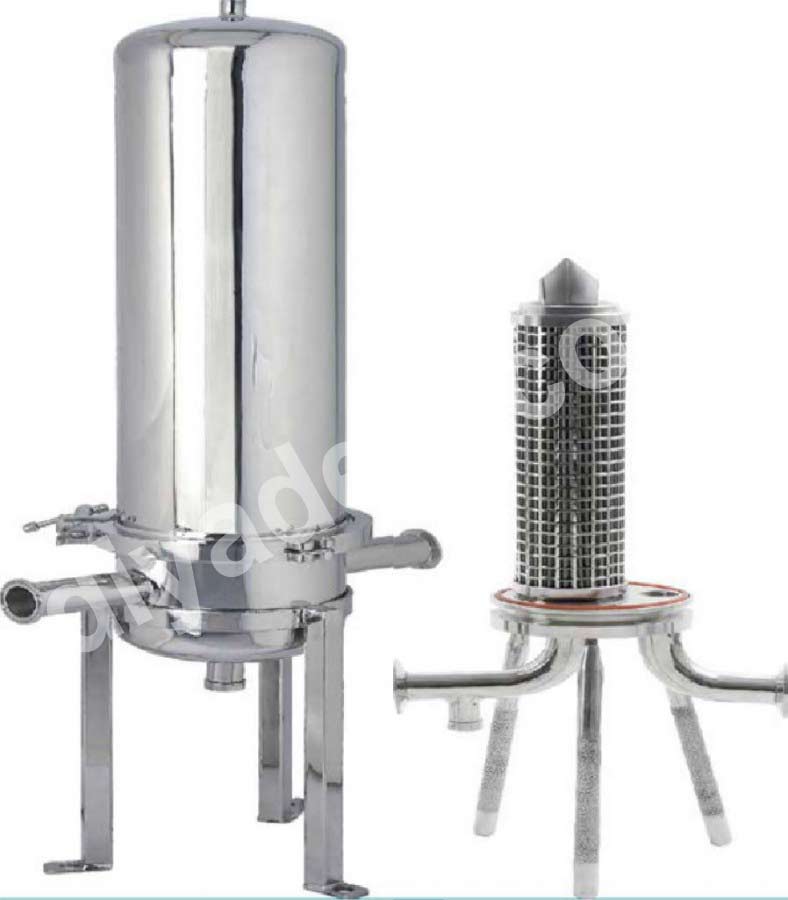

Hygienic SS Filter Housing
Hygienic filter housing is manufactured from 316 stainless steel of the highest quality. These are suitable for a variety of liquid filtration applications designed to fit standard 222 'O' Rings & 226 'O' Ring cartridges. They have an integral bayonet locator providing an efficient seal between housing and cartridge. Depending on their type hygienic filter housing is available in 1, 3, 5 and 12 round configurations and in 10", 20", 30" and 40" length cartridge. Its hygienic design ensures low product hold up & reduces product loss.
Operation:
Contaminated fluid enters the housing and is distributed evenly around the filter cartridges. Filtration takes place from outside to inside. Solids are collected on the outside of filter cartridges & clear filtrate is collected at outlet.
Enquiry Call Now
Features & Benefits:
- Integral cartridge location
- Low product hold-up
- Easy to clean
- Steam sterilisable
- EPDM seals / silicone
- Quick release housing clamp
- Hygienic clamp pipe fittings
- Full range of sizes
Additional Features:
- Alternative connection types are available such as Table-E, Table-F, ASA 150#, and DIN.
- Standard seal material is EPDM. Silicone and Viton options are also available.
- A full range of pipe accessories are available such as clamps, seals, ferrules and hose liners.
Technical Specifications
| Material of Construction | SS 316L (Stainless Steel SS 316 L) |
| Connections | Hygienic clamp type |
| Surface treatment | Mirror polished & electro polished |
| Cartridge fitting | 222 ‘O’ ring / 226 ‘O’ Ring (bayonet fit) |
| Maximum operating pressure | 7 BARG (102 psig) |
| Housing closure seal | EPDM / silicone ‘O’ Ring for single cartridge, EPDM / silicone square O Ring for multi cartridge |
Applications
- Food
- Dairy
- Beverage
- Electronics and Pharmaceutical Industries
