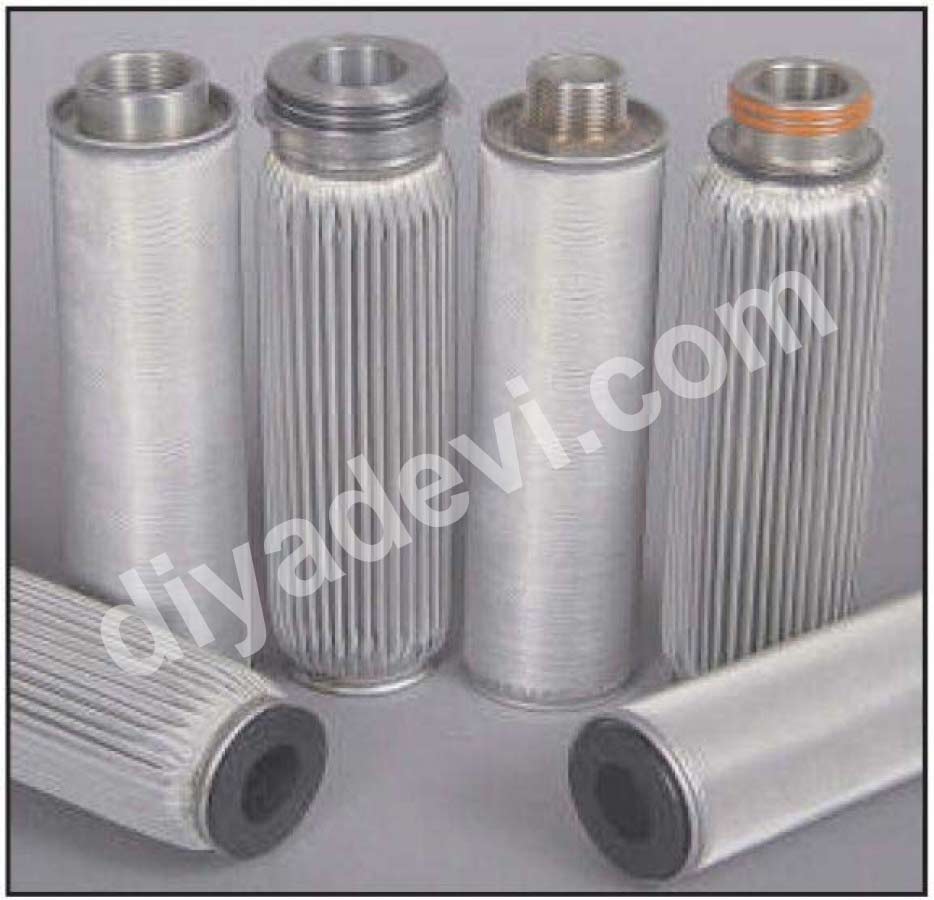

SS Pleated Cartridge
DIYA stainless steel filters cartridges are the perfect choice for high temperature and high viscosity applications. Manufactured using a sintered woven wire mesh/ Powder media with a higher voids volume. We use sintered (welded at the intersection) wire mesh /Powder as a standard which produces an extremely strong porous material whose fibres will not shift under stress and whose pore size integrity is continually maintained. The mesh diameter is optimized to give higher open area per unit area resulting in higher dirt holding capacity.
Produced with SS 304L or SS 316L sintered media offers excellent reliability for critical applications. Produced in three distinct categories for extended cartridge life and more dirt holding capacity. All welded construction gives cartridges highest mechanical strength. The cartridges are designed for cleanable and reusable applications thereby eliminating frequent cartridge change out. Optional pleat protector available to prevent denting and damage to the pleated surface.
Enquiry Call Now
- All-stainless steel construction
- Sintered mesh screen/ sintered powder media
- Pleated for higher dirt holding capacity while Cylindrical media available for economic usage.
- Fixed pore size to ensure consistent reproducible performance
- High Corrosion resistant
- High differential pressure resistant. Can be repeatedly backwashed
- High-temperature capabilities
- Repeatedly cleanable
- All SS media - No soluble polymeric extractables
- No unloading or shedding
- Absolute rated for reliable performance
- FDA-Compliant materials per 21 CFR
- Catalyst recovery in Petrochemical & Chemical
- Fuel & Hydraulic Oil
- Paints
- Monomer Filtration
- Polymer Filtration
- Waste Water
- Process Water
- Gas Filtration
- Oil Filtration
- Compressed Air.
- Steam
| Recommended Flow Rates per 1 O" Long Cartridge (Aqueous Flow) | |||||
|---|---|---|---|---|---|
| Micron Removal Rating Sintered Powder Media | Aqueous Flow Rate LPM | Micron Removal Rating Sintered Cylindrica Media | Aqueous Flow Rate LPM | Micron Removal Rating Sintered Pleated Media | Aqueous Flow Rate LPM |
| 0.5 | 2 | - | - | - | - |
| 1 | 2 | - | - | - | - |
| 3 | 3 | - | - | - | - |
| 5 | 5 | 5 | 8 | 5 | 12 |
| 10 | 7 | 10 | 10 | 10 | 15 |
| 20 | 10 | 20 | 18 | 20 | 30 |
| 50 | 20 | 50 | 25 | 50 | 40 |
| 100 | 36 | 100 | 50 | ||
| Maximum operating Temp | 232° C (Up to 400° C for SOE Cartridges with metal to metal seal) |
| Maximum Change out | 60 PSID |
| Pressure Drop Recommended Change out | 35 PSID |
| Nominal lengths | 9.75, 10, 20, 30, 40 inches |
| Outside Diameter | 2.6 inches (66 mm) |
| Inside Diameter | 1 inch (2.54 cm) |
